Menlomicro Power Switches
The ideal Switch

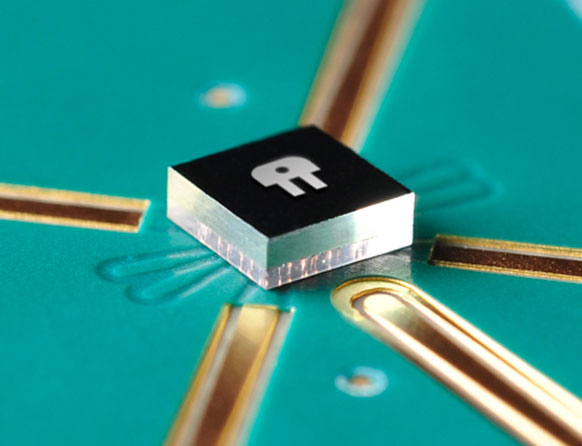

Combining semiconductor manufacturing with a micro-mechanical actuator, the Ideal Switch air-gap achieves practically infinite isolation when OFF, and close to Zero Ω when ON.
This combination creates the unique properties of the Ideal Switch:
| Function | Frequency (Min-Max) |
Insertion Loss |
IP3 | RON | COFF | Isolation | Power (CW) |
Switching Speed |
Lifetime | Controller | Input Voltage |
Packaging | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM5130 | SP4T | DC–26GHz | 1.3 dB | >85 dBm | 0.5 Ω | 10 fF | 18 dB | 25 W | <10 µs | >3B cycles | Direct Drive | 89 V | 2.5 x 2.5 mm WL-CSP |
| MM5600 | DPDT | DC–20GHz | 1.3 dB | >85 dBm | 0.5 Ω | 10 fF | 18 dB | 8 W | <10 µs | >3B cycles | Parallel | 89 V | 8 x 8 mm QFN |
| MM5120 | SP4T | DC–12GHz | 0.75 dB | >85 dBm | 0.5 Ω | 10 fF | 22 dB | 25 W | <10 µs | >3B cycles | Parallel | 3.3 V | 4 x 4 mm BGA |
