- RedLink Industrial grade fiber optic transmitters and receivers (DC-1/5/10/50 MBd) in the RedLink® connector.
- OptoLock® (OL) provides the quickest of terminations with bare POF. Analog and industrial fiber optic transceivers at DC/5/10/125/250 Mbps in OptoLock®.
- The LC connector has been ratified by the IEC for use with POF and PCS cable assemblies. Analog and industrial fiber optic transceivers at DC/5/10/125/250 Mbps in an LC connector.
Firecomms
Firecomms is a global leader in the provision of fiber optic solutions and optical transceivers, skillfully combining state-of the-art compound and silicon semiconductor technology with inventive small-scale integration. Firecomms pioneered highly efficient RCLEDs, the connectorless Optolock transceiver, and many other innovative technologies that transform our customers’ communications networks in multi-discipline market segments of power & energy, industrial, transportation, medical, gaming, mil/aero and consumer.

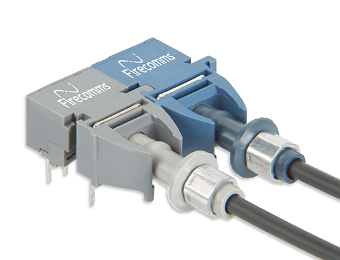

RedLink®
Our RedLink® (RL) is compatible with the universally known Versatile Link range of connectors and cables. We offer a range of industrial grade fiber optic transmitters and receivers (DC-1/5/10/50 MBd) in the RedLink® connector.
-

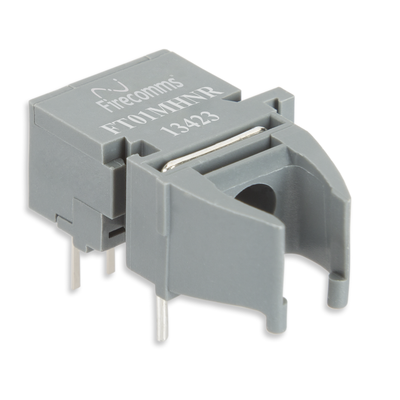

RedLink Transmitter
FT01MHNR
Data Rate
DC-1 MBd
Type
Transmitter
Orientation
Horizontal
Colour
Grey
Features
- 650nm RCLED
- For versatile link plugs
-

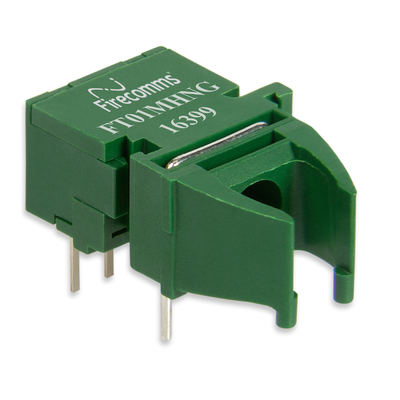

RedLink Transmitter
FT01MHNG
Data Rate
DC-1 MBd
Type
Transmitter
Orientation
Horizontal
Colour
Green
Features
- 530nm Green LED
- For versatile link plugs
-
RedLink Receiver
FM01MHIR
Data Rate
DC-1 MBd
Type
Receiver
Orientation
Horizontal
Colour
Blue
Features
- For Versatile link plugs
- With TTL I/O
-

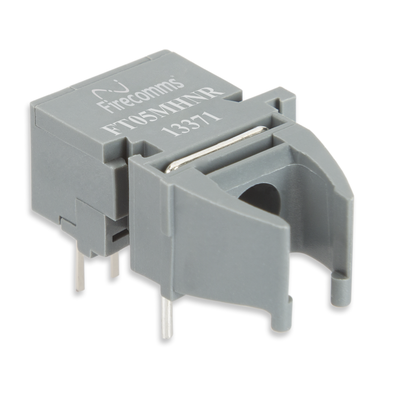

RedLink Transmitter
FT05MHNR
Data Rate
DC-5 MBd
Type
Transmitter
Orientation
Horizontal
Colour
Grey
Features
- 650nm RCLED
- For Versatile link plugs
-
RedLink Receiver
FM05DHIR
Data Rate
DC-5 MBd
Type
Receiver
Orientation
Horizontal
Colour
Blue
Features
- For Versatile link plugs
- With TTL I/O
- Dual voltage (3.3V and 5V)
-

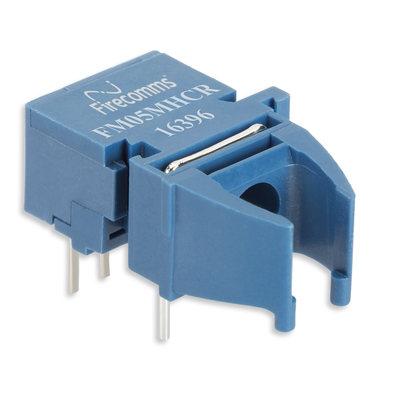

RedLink Receiver
FM05MHCR
Data Rate
DC-5 MBd
Type
Receiver
Orientation
Horizontal
Colour
Blue
Features
- Open Collector Output
- 1kOhm pull-up resistor
- For Versatile link plugs
-

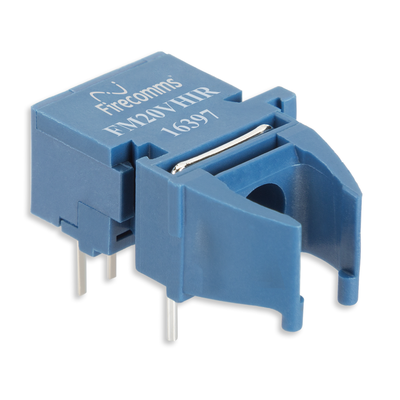

RedLink Receiver
FM20VHIR
Data Rate
DC-5 MBd
Type
Receiver
Orientation
Horizontal
Colour
Blue
Features
- 20V Open Collector Output
- For Versatile link plugs
-
RedLink Transmitter

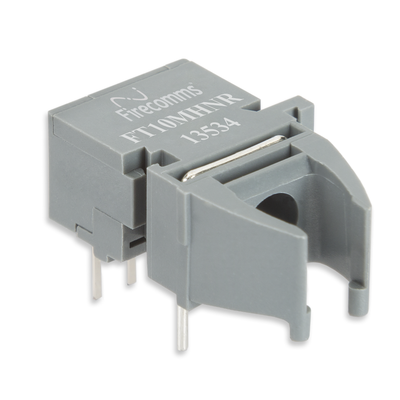

FT10MHNR
Data Rate
DC-10 MBd
Type
Transmitter
Orientation
Horizontal
Colour
Grey
Features
- 650nm RCLED
- For Versatile link plugs
-

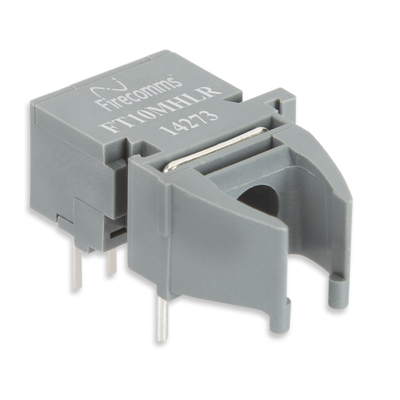

RedLink Transmitter
FT10MHLR
Data Rate
DC-10 MBd
Type
Transmitter
Orientation
Horizontal
Colour
Grey
Features
- Low current 650nm RCLED
- For Versatile link plugs
-

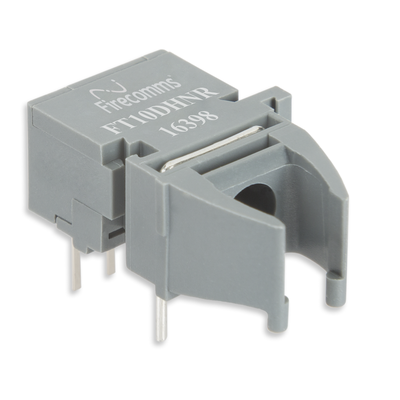

RedLink Transmitter
FT10DHNR
Data Rate
DC-10 MBd
Type
Transmitter
Orientation
Horizontal
Colour
Grey
Features
- 650nm RCLED
- With integrated driver
- Non-inverting logic
- For Versatile link plugs
-
RedLink Receiver
FM10DHIR
Data Rate
DC-10 MBd
Type
Receiver
Orientation
Horizontal
Colour
Black
Features
- Inverting logic
- Dual voltage (3.3V and 5V) operation
- For Versatile link plugs
-
RedLink Transmitter

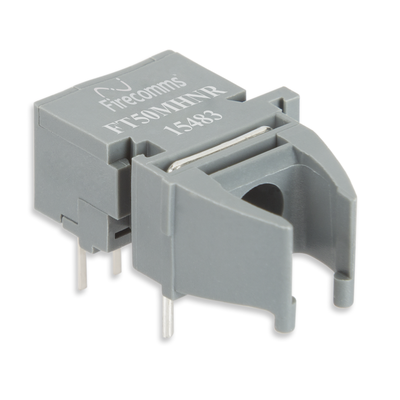

FT50MHNR
Data Rate
DC-50 MBd
Type
Transmitter
Orientation
Horizontal
Colour
Grey
Features
- 650nm RCLED
- With integrated driver
- Inverting logic
- For Versatile link plugs
-
RedLink Receiver

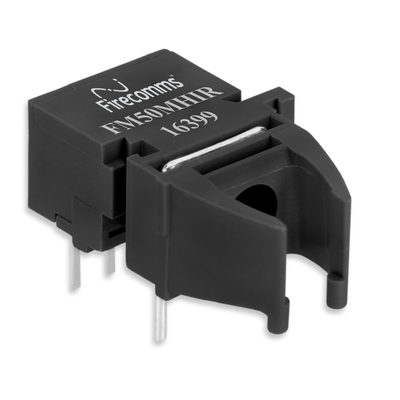

FM50MHIR
Data Rate
DC-50 MBd
Type
Receiver
Orientation
Horizontal
Colour
Black
Features
- Inverting logic
- Dual voltage (3.3V and 5V) operation
- For Versatile link plugs
-
RedLink Receiver

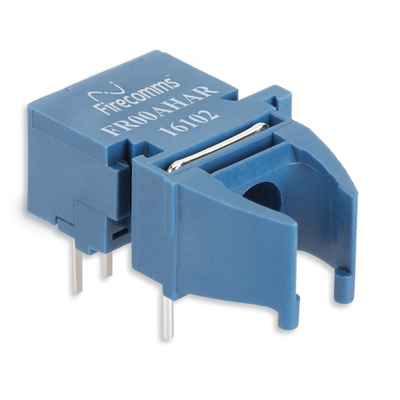

FR00AHAR
Data Rate
Analog
Type
Receiver
Orientation
Horizontal
Colour
Blue
Features
500 um Photodiode
-
RedLink Transmitter
FT01MVNR
Data Rate
DC-1 MBd
Type
Transmitter
Orientation
Horizontal
Colour
Grey
Features
- 650nm RCLED
- For Versatile link plugs
-
RedLink Receiver

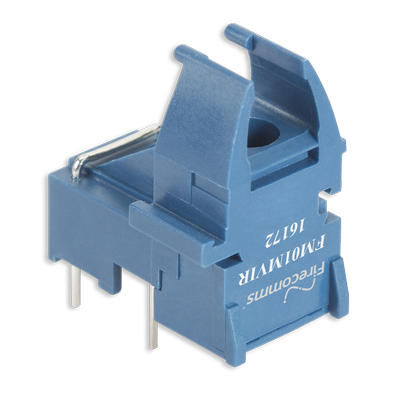

FM01MVIR
Data Rate
DC-1 MBd
Type
Receiver
Orientation
Vertical
Colour
Blue
Features
- For Versatile link plugs
- With TTL I/O
-
RedLink Transmitter
FT05MVNR
Data Rate
DC-5 MBd
Type
Transmitter
Orientation
Vertical
Colour
Grey
Features
- 650nm RCLED
- For Versatile link plugs
-
RedLink Receiver
FM05DVIR
Data Rate
DC-5 MBd
Type
Receiver
Orientation
Vertical
Colour
Blue
Features
- For Versatile link plugs
- With TTL I/O
- Dual voltage (3.3V and 5V)
-
RedLink Receiver
FM05MVCR
Data Rate
DC-5 MBd
Type
Receiver
Orientation
Vertical
Colour
Blue
Features
- Open Collector Output
- 1kOhm pull-up resistor
- For Versatile link plugs
-
RedLink Receiver

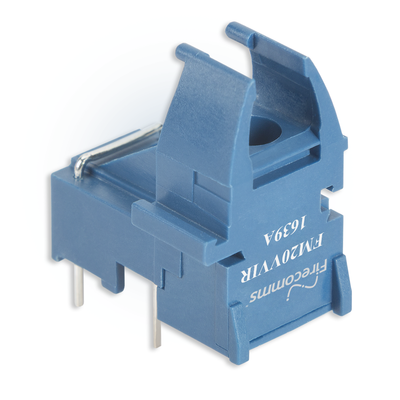

FM20VVIR
Data Rate
DC-5 MBd
Type
Receiver
Orientation
Vertical
Colour
Blue
Features
- 20V Open Collector Output
- For Versatile link plugs
-

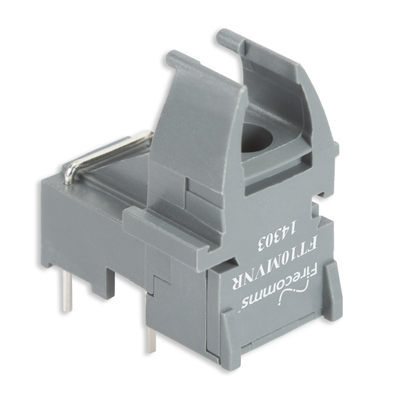

RedLink Transmitter
FT10MVNR
Data Rate
DC-10 MBd
Type
Transmitter
Orientation
Vertical
Colour
Grey
Features
- 650nm RCLED
- For Versatile link plugs
-

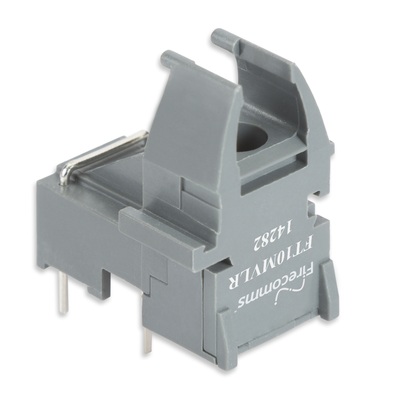

RedLink Transmitter
FT10MVLR
Data Rate
DC-10 MBd
Type
Transmitter
Orientation
Vertical
Colour
Grey
Features
- Low current 650nm RCLED
- For Versatile link plugs
-
RedLink Transmitter
FT10DVNR
Data Rate
DC-10 MBd
Type
Transmitter
Orientation
Vertical
Colour
Grey
Features
- 650nm RCLED
- With integrated driver
- Non-inverting logic
- For Versatile link plugs
-
RedLink Receiver

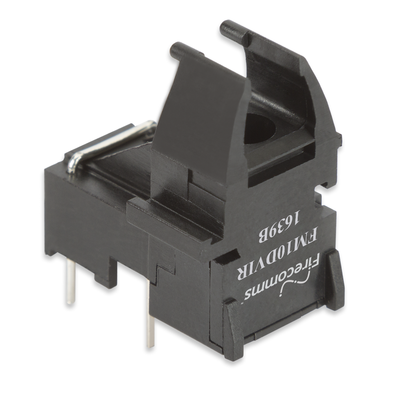

FM10DVIR
Data Rate
DC-10 MBd
Type
Receiver
Orientation
Vertical
Colour
Black
Features
- Inverting logic
- Dual voltage (3.3V and 5V) operation
- For Versatile link plugs
-

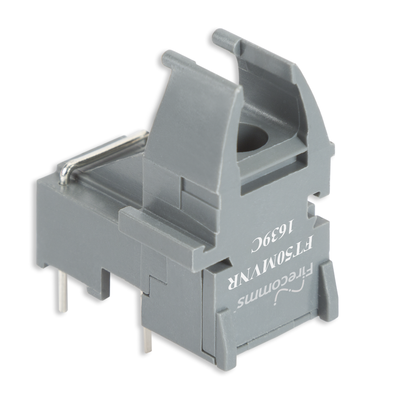

RedLink Transmitter
FT50MVNR
Data Rate
DC-50 MBd
Type
Transmitter
Orientation
Vertical
Colour
Grey
Features
- 650nm RCLED
- With integrated driver
- Inverting logic
- For Versatile link plugs
-
RedLink Receiver
FM50MVIR
Data Rate
DC-50 MBd
Type
Receiver
Orientation
Vertical
Colour
Black
Features
- Inverting logic
- Dual voltage (3.3V and 5V) operation
- For Versatile link plugs
-
RedLink Receiver

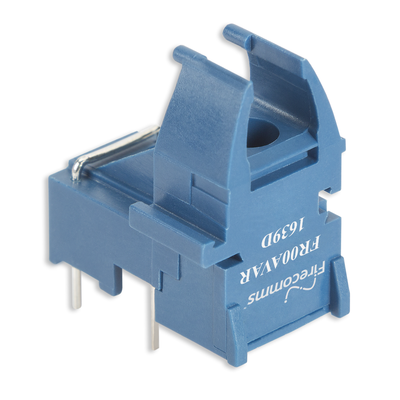

FR00AVAR
Data Rate
Analog
Type
Receiver
Orientation
Vertical
Colour
Blue
