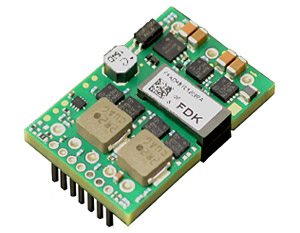

- DOSA based industry standard 1/16 Brick digital power modules with PMBus interface
- DOSA 1st gen. based POL
- DOSA 3rd gen. based POL with PMBus interface and Tunable Loop
- FDK original design mini POL
FDK DC to DC Power Modules
FDK’s Sensei Series of isolated dc-dc power modules are in industry-standard footprints for isolated brick power modules. The Senpai Series and Tomodachi Series of non-isolated dc-dc power modules are also in industry-standard footprints for Point-of-Load power modules. The DK Series of non-isolated dc-dc power modules are FDK original design mini Point-of-Load power modules. These power modules deliver exceptional electrical and thermal performance.
Sensei Series Products Specification
| Parts NO. | Input V |
Output V |
Output A |
Length Inches (mm) |
Width Inches (mm) |
Height Inches (mm) |
Connector | Product Details |
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|
 FPER48S01209*A |
36-60 | 12.0 | 9 | 2.30 (58.4) |
0.898 (22.8) |
0.319 (8.1) |
Surface Mount | click |  |
FPER48S3R330*A |
36-60 | 3.3 | 30 | 2.30 (58.4) |
0.898 (22.8) |
0.319 (8.1) |
Surface Mount | click | |
FPER48S5R020*A |
36-60 | 5.0 | 20 | 2.30 (58.4) |
0.898 (22.8) |
0.319 (8.1) |
Surface Mount | click | |
FPER48S6R017*A |
36-60 | 6.0 | 17 | 2.30 (58.4) |
0.898 (22.8) |
0.319 (8.1) |
Surface Mount | click | |
 FPER48T01210*A |
36-75 | 12.0 | 10 | 2.30 (58.4) |
0.898 (22.8) |
0.421 (10.7) |
Through-hole | click | |
 FPER48T01225*A |
36-75 | 12.0 | 25 | 2.30 (58.4) |
0.90 (22.8) |
0.45 (11.6) |
Through-hole | click | |
 FPER48T1R230*A |
36-75 | 1.2 | 30 | 2.30 (58.4) |
0.898 (22.8) |
0.421 (10.7) |
Through-hole | Click | |
FPER48T3R330*A |
3.3 | ||||||||
 FPER48T5R020*A |
36-75 | 5.0 | 20 | 2.30 (58.4) |
0.898 (22.8) |
0.421 (10.7) |
Through-hole | Click | |
FPER48T5R025*AU |
36-75 | 5.0 | 25 | 2.30 (58.4) |
0.898 (22.8) |
0.421 (10.7) |
Through-hole | Click | |
 FPQR48T01215*A |
36-75 | 12.0 | 15 | 2.30 (58.4) |
1.45 (36.8) |
0.402 (10.2) |
Through-hole | Click | |
 FPQR48T01218*A |
36-75 | 12.0 | 18 | 2.30 (58.4) |
1.45 (36.8) |
0.402 (10.2) |
Through-hole | Click | |
 FPQR48T01225*ADiscontinue |
36-75 | 12.0 | 25 | 2.30 (58.4) |
1.45 (36.8) |
0.579 (14.7) |
Through-hole | Click | |
FPQR48T01233*A |
36-75 | 12.0 | 33 | 2.30 (58.4) |
1.45 (36.8) |
0.350 (8.9) |
Through-hole | Click | |
 FPQR48T5R030*A |
36-75 | 5.0 | 30 | 2.30 (58.4) |
1.45 (36.8) |
0.402 (10.2) |
Through-hole | Click | |
 |
