Cologne Chip FPGAs made in Germany

Watch out FPGA Designers! Discover GateMate™ FPGA!
Your benefits:
• “Made in Germany” with Global Foundries (28nm SLP)
• Logic capacity from 20480 up to 512000 of LEs
• 3 Operation Modes: low power (0.9V), economy (1.0V), speed (1.1V)
• Lowest total cost of ownership
• Open-Source Design Flow based on Yosys framework.

Unlock the Potential with GateMate™ FPGA made in Germany Technology:

Affordable Solutions for Many Needs! GateMate™ FPGA Technology brings a wide range of options for different tasks. Whether you’re building a high-speed network needing top-notch capacity and performance, or looking for a low-cost, small FPGA to boost your software-driven tech, Cologne Chip GateMate™ FPGAs are here for you. They help tie your system together smoothly while making sure you get the most performance for each watt of power used. With GateMate™, achieving your project goals just got easier!

Specification

Logic capacity from 20,480 to 512,000 CPEs
Block RAM from 1,310,720 to 32,768,000 bits
3 Operation Modes: low power (0.9V), economy (1.0V), speed (1.1V)

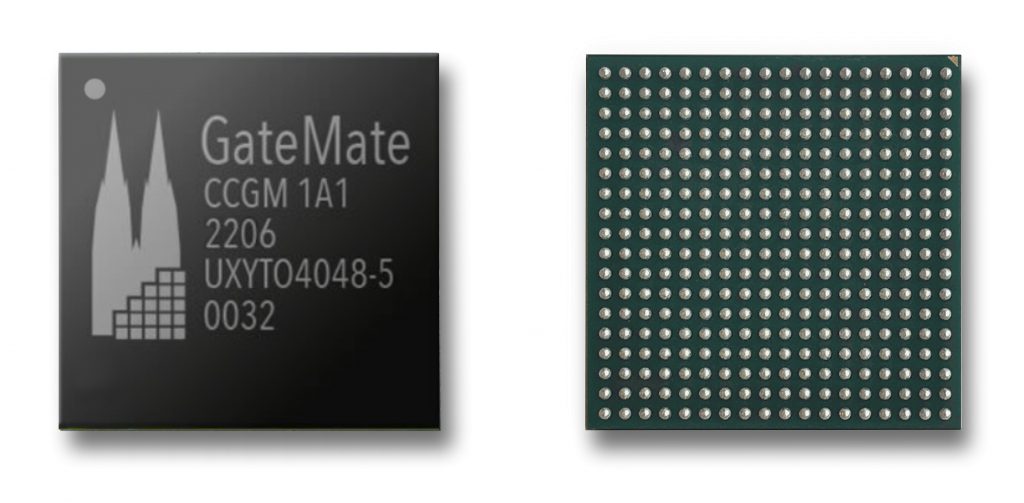

Ball grid package for low size and high pin count, requiring only 4 layers on PCB
Small configuration file and fast configuration by using Quad SPI interface (up to 100MHz)
Embedded 5 Gb/s Serializer-Deserializer (SerDes)
Multiple clock domains (from 4 to 100 embedded PLLs)
Support for ADC and DAC with additional IPs
No excessive start-up currents.
GateMate™ is available in different variants and sizes with preserved main pin compatibility.
ITAR free

Gate Mate FPGA Specifications
