Mpression High Speed Image transfer

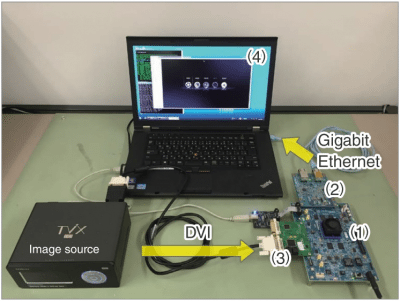

GigEV_EvaEnv_0

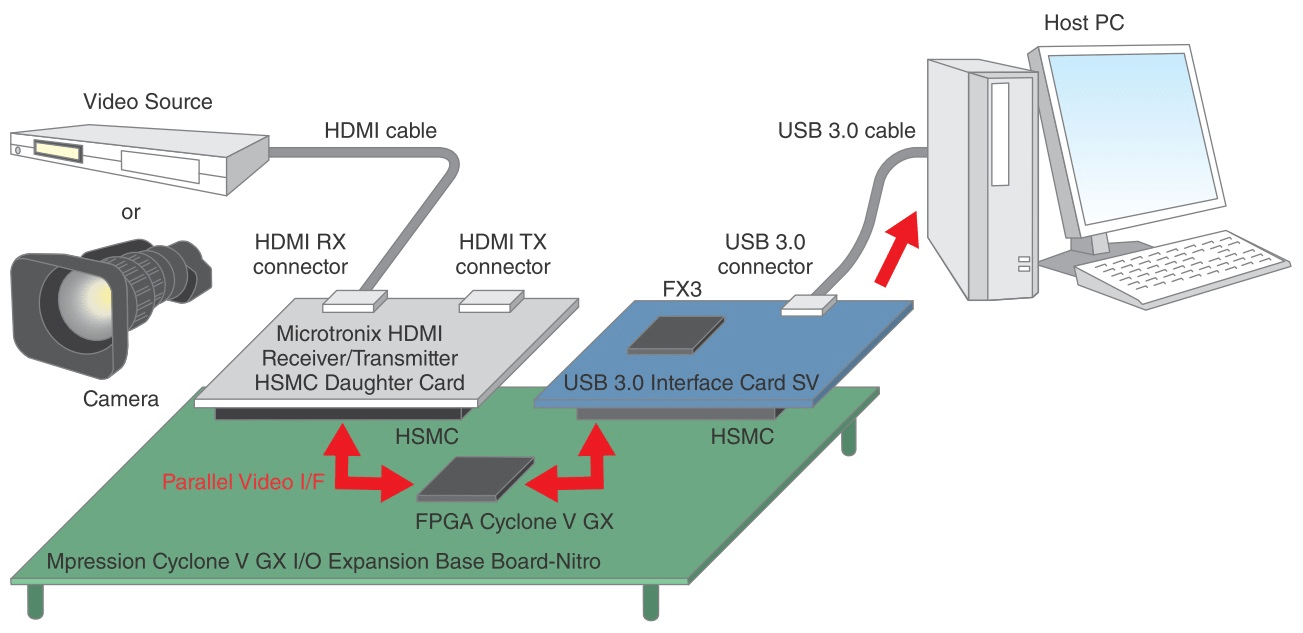

USB3V_EvaEnv

Mpression High Speed Image transfer

mpression

  • GigE Vision® Device Package

           High-speed image data transfer complying with GigE Vision standard

  • USB3 Vision™ Device Package

    High-speed image data transfer complying with USB3 Vision standard

Category: Company: Mpression

High-speed image data transfer complying with GigE Vision standard.

Machine Vision

High-speed image data transfer complying with USB3 Vision standard.

USB3 Vision Device Package PDF

•Compliant with GigE Vision Standard Version 1.2/Version 2.0
•Supports Time Synchronization compliant with IEEE1588-2008
•Compliant with EMVA GenICam Standard Version 2.0
(GenICam middleware for Windows OS is also available from Macnica.)
•Supports Packet Re-transmission
•Other functions ◦Chunk data transfer, GigE Vision action commands, Time stamp, Packet delay
◦Image data (RGB, YUV, etc.) and RAW data transfer

  • Compliant with USB3 Vision Standard Version 1.01
  • Compliant with EMVA GenICam Standard Version 3.0.1
    (A middleware for Windows Macnica developed and named “BetelmaGiCs GenICam Software” complying with the GenICam standard is also available from Macnica.)
  • Image data (RAW, YUV, RGB, etc.) and chunk data transfer
